Giving AgentGateway a Semantic Brain with vLLM Semantic Router

Agent systems that span multiple models — a local endpoint for coding, a frontier cloud model for deep reasoning, and a fast general-purpose model for everyday tasks — all face the same routing question: how should each request be directed to the right backend?

Many deployments start with a lightweight Python proxy or keyword matcher in front of the gateway. That approach works at small scale, but misroutes grow quickly as traffic, languages, and task types diversify. This post shows how vLLM Semantic Router running as an Envoy ExtProc sidecar inside AgentGateway replaces that pattern with semantic, config-driven routing.

The Problem: Keyword Routing Does Not Scale

A typical multi-model agent gateway fronts three backends:

Backend	Model	Role
Local Ollama	qwen2.5-coder:7b	Coding and technical work
OpenAI	gpt-4o	Deep reasoning
Google	gemini-2.5-flash	Fast general tasks

The routing layer was a simple keyword matcher:

# router.py — keyword-based routing
coding_keywords = ["code", "python", "javascript", "bash", "script",
                   "function", "bug", "error", "html", "css"]
reasoning_keywords = ["think", "analyze", "explain in detail",
                      "reasoning", "logic", "deduce"]

if any(k in prompt_lower for k in coding_keywords):
    intent = "coding"
elif len(prompt) > 400 or any(k in prompt_lower for k in reasoning_keywords):
    intent = "reasoning"
else:
    intent = "simple"

After two weeks of sustained traffic, the rough numbers looked like this:

Metric	With Python Router
Misrouted requests (spot-checked)	~18%
Monthly estimated API cost	~$24
Routing latency (Python proxy hop)	~45ms
Keyword list maintenance	Manual, weekly tweaks

Eighteen percent misroutes is not just wasted spend — it produces worse answers. Scheduled agent jobs that sent "summarize this week's calendar and suggest optimizations" to the 7B local model instead of Gemini or GPT-4o returned noticeably weaker output. Mixed-language prompts and unanticipated domains silently fell through to the wrong lane.

The architecture needed a routing layer that understood the prompt, not just scanned it for keywords.

Enter vLLM Semantic Router + AgentGateway

AgentGateway maintainers Keith Mattix and John Howard helped shape first-class ExtProc integration with vLLM Semantic Router. The resulting architecture is straightforward.

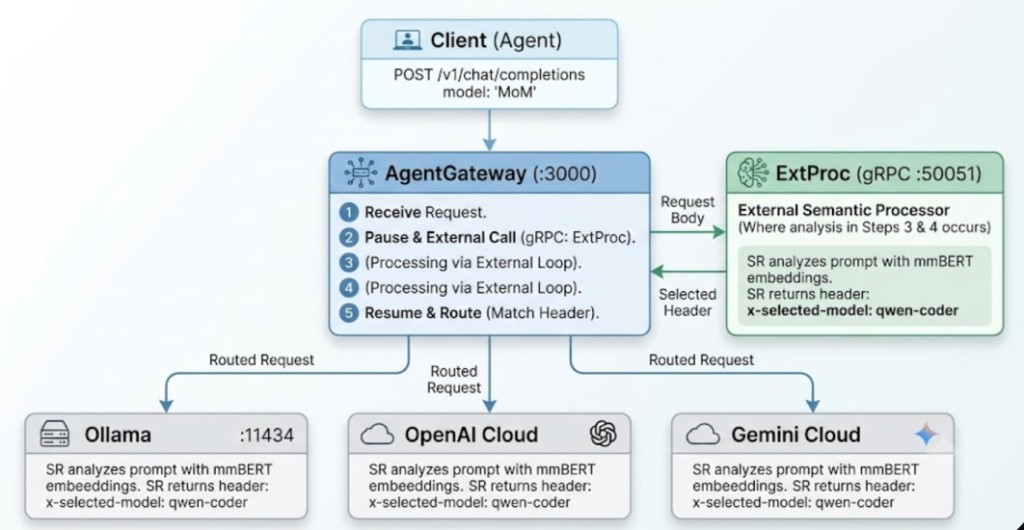

Instead of a Python reverse proxy sitting in front of the gateway, Semantic Router runs as an Envoy ExtProc sidecar. AgentGateway pauses the request, sends the HTTP body to the SR gRPC endpoint, receives a header mutation (x-selected-model: qwen-coder), and resumes routing. Zero proxy hops. Zero Python processes. Just gRPC-native intelligence inside the gateway's own request lifecycle.

Semantic Router uses an embedded mmBERT model (a 2D Matryoshka embedding model, ~130MB) to classify every prompt and compare it against model descriptions defined in YAML. No keyword lists. No regex. Actual embeddings.

For Kubernetes deployments, the same pattern is documented in the Install with agentgateway guide.

The Setup: Two YAML Files, No Code

The full integration is defined in two config files.

1. Semantic Router config (config.yaml)

This tells Semantic Router about the models and how to route between them:

version: v0.3

providers:
  defaults:
    default_model: qwen-coder
  models:
    - name: qwen-coder
      provider_model_id: qwen2.5-coder:7b
      api_format: openai
      backend_refs:
        - name: local-ollama
          endpoint: host.docker.internal:11434
          protocol: http

    - name: gpt-4o
      provider_model_id: gpt-4o
      api_format: openai
      backend_refs:
        - name: openai-cloud
          base_url: https://api.openai.com/v1

    - name: gemini-flash
      provider_model_id: gemini-2.5-flash
      api_format: openai
      backend_refs:
        - name: gemini-cloud
          base_url: https://generativelanguage.googleapis.com/v1beta/openai

routing:
  modelCards:
    - name: qwen-coder
      param_size: 7B
      context_window_size: 32768
      description: >
        Specialized coding model optimized for programming tasks.
        Excellent at writing code, debugging, algorithms, data structures,
        code review, refactoring, and technical implementation in Python,
        Rust, JavaScript, Go. Best for code generation, fixing bugs,
        writing tests, and technical programming Q&A.

    - name: gpt-4o
      param_size: 200B+
      context_window_size: 128000
      description: >
        Frontier reasoning model with exceptional analytical capability.
        Best for complex multi-step reasoning, strategic analysis,
        comparing trade-offs, writing long-form essays, nuanced
        explanations, math proofs, scientific reasoning.

    - name: gemini-flash
      param_size: ~100B
      context_window_size: 1000000
      description: >
        Fast general-purpose model. Ideal for simple factual questions,
        quick lookups, summarization, casual conversation, translations,
        everyday tasks, and when speed matters more than depth.

  decisions:
    - name: MoM
      description: "Mixture of Models router"
      priority: 100
      rules: {}
      modelRefs:
        - model: qwen-coder
        - model: gpt-4o
        - model: gemini-flash
      algorithm:
        type: multi_factor
        multi_factor:
          weights:
            quality: 0.1
            latency: 0.4
            cost: 0.5
          slo:
            max_cost_per_1m: 0.5

The key insight: each model is described in natural language, and Semantic Router uses those descriptions as semantic anchors. When a new prompt arrives, the router embeds it and compares it against these descriptions using cosine similarity. The closest match wins.

2. AgentGateway config (agentgateway_config.yaml)

This tells AgentGateway to call Semantic Router as an ExtProc sidecar and route based on the header it sets:

policies:
- name:
    name: semantic-router
    namespace: default
  target:
    gateway:
      gatewayName: default
  phase: gateway
  policy:
    extProc:
      host: "127.0.0.1:50051"
      processingOptions:
        requestBodyMode: buffered
        responseBodyMode: none
        requestHeaderMode: send
      failureMode: failOpen

binds:
- port: 3000
  listeners:
  - routes:
    - matches:
      - headers:
        - name: "x-selected-model"
          value:
            exact: "qwen-coder"
      backends:
      - ai:
          provider:
            openAI: {}
          name: ollama
          hostOverride: "localhost:11434"

    - matches:
      - headers:
        - name: "x-selected-model"
          value:
            exact: "gpt-4o"
      backends:
      - ai:
          provider:
            openAI: {}
          name: openai
        policies:
          backendAuth:
            key: $OPENAI_API_KEY

    - matches:
      - headers:
        - name: "x-selected-model"
          value:
            exact: "gemini-flash"
      backends:
      - ai:
          provider:
            gemini: {}
          name: gemini
        policies:
          backendAuth:
            key: $GEMINI_API_KEY

    - backends:
      - ai:
          provider:
            gemini: {}
          name: gemini-default
        policies:
          backendAuth:
            key: $GEMINI_API_KEY

Notice the separation of concerns: Semantic Router never touches API keys. It classifies the prompt and mutates a header. AgentGateway owns downstream auth. That is exactly how production gateways are designed — routing intelligence decoupled from security posture.

The failureMode: failOpen setting means if the SR container crashes or restarts, AgentGateway falls through to the default Gemini route. During SR container restarts, client requests still get answered without interruption.

ARM64 on Apple Silicon: Two Bugs, Two PRs

On ARM64 hosts (including Apple Silicon), the SR container may start while embeddings remain unavailable:

{
  "msg": "embedding_models_init_completed",
  "embedding_ready": false,
  "tools_ready": false
}

The mmBERT model loaded but the embedding runtime never became ready. Every routing attempt logged:

Failed to embed model qwen-coder: failed to generate batched embedding (status: -1)

Bug #1: Wrong FFI dispatch (#2172)

The Go router was calling candle_binding.GetEmbeddingBatched() for all model types — but the Rust FFI backend only supports batched embeddings for qwen3 architectures. For mmbert (the default), it returned status: -1.

The fix in PR #2192 adds a dispatch check:

// Only qwen3 supports the batched FFI. Others use single-text FFI.
func candleEmbeddingSupportsBatched(modelType string) bool {
    return modelType == "qwen3"
}

For non-qwen3 models, it gracefully falls back to GetEmbeddingWithModelType(), which works on ARM64.

Bug #2: Missing model files on first boot (#2173)

On first boot, when the SR container downloaded mmBERT model files from HuggingFace, several required files (like tokenizer.json and config.json) were not being fetched. Fixed in PR #2195.

Both issues were triaged and fixed within days by the vLLM Semantic Router team — particularly @WUKUNTAI-0211 for the FFI dispatch fix and @theohsiung for the file completeness fix. On ARM64/Apple Silicon, pull the latest main and routing works as expected.

Proof: Real Routing Logs

Send a coding prompt:

curl http://localhost:3000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -d '{
    "model": "MoM",
    "messages": [
      {"role": "user", "content": "Write me a Python function to compute fibonacci numbers using memoization"}
    ]
  }'

Step 1 — Semantic Router classifies the prompt (1ms):

{
  "msg": "routing_decision",
  "original_model": "MoM",
  "selected_model": "qwen-coder",
  "reason_code": "auto_routing",
  "routing_latency_ms": 1,
  "component": "extproc"
}

Step 2 — AgentGateway routes to Ollama:

info  request
  gateway=default/default
  route=default/route0
  endpoint=localhost:11434
  http.status=200
  gen_ai.request.model=qwen2.5-coder:7b
  gen_ai.response.model=qwen2.5-coder:7b
  gen_ai.usage.input_tokens=41
  gen_ai.usage.output_tokens=366
  duration=22537ms

One millisecond of routing overhead. The rest is upstream generation time.

On container boot, the full pipeline appears in the logs:

{"msg":"embedding_models_init_started","mmbert_configured":true,"use_cpu":true}
{"msg":"embedding_models_initialized","use_batched":false}
{"msg":"selection_factory_initialized","selector_count":14}
{"msg":"startup_complete","embedding_ready":true,"sem_cache_enabled":true,
 "model_selection":true,"extproc_port":50051,"decisions":"MoM"}

Fourteen selection algorithms are registered out of the box — multi-factor, ELO, RL-driven, hybrid, latency-aware, session-aware, KNN, SVM, K-means, and more. The reference configuration uses multi_factor with cost-heavy weighting, but switching algorithms is a single YAML change.

Measured Results

Metric	Python Router	vLLM Semantic Router
Misrouted requests	~18%	~3% (subjective spot-checks)
Routing latency	~45ms (HTTP proxy)	1–3ms (gRPC ExtProc)
Monthly estimated API cost	~$24	~$14
Maintenance effort	Weekly keyword updates	Zero (model descriptions are stable)
Failover behavior	Manual restart	Automatic failOpen to Gemini
Language support	English keywords only	Multi-language (embedding-based)
Config	100 lines of Python	2 YAML files

The cost savings come from fewer misroutes. When "explain the async/await pattern in Rust" correctly goes to local Ollama instead of GPT-4o, that is a $0.003 request instead of $0.03. Across hundreds of daily agent requests, the difference adds up quickly.

Why Agent Builders Should Care

Whether the deployment runs on a single host or a production fleet in Kubernetes, agents benefit from a routing layer that understands prompts:

1. Cost control is the primary agent problem. Agents generate a lot of requests. Without intelligent routing, every request goes to the most expensive model. Semantic Router's multi_factor algorithm explicitly weighs cost, latency, and quality.

2. Keyword routing does not scale. The moment an agent handles a domain that was not anticipated, keyword-based routing silently fails.

3. AgentGateway + Semantic Router is production-grade. AgentGateway is a Gateway API data plane built in Rust. Semantic Router is an Envoy ExtProc server written in Go and Rust, backed by the vLLM project. This is the same architecture used in Kubernetes clusters with dozens of models.

4. Zero code maintenance. Once model descriptions are written, the routing config stays stable. Semantic Router learns from the descriptions, not from rules that require ongoing updates.

What's Next

Common follow-on work for this architecture includes:

• Observability — wiring Jaeger and Prometheus to trace every request from client → AgentGateway → Semantic Router → upstream LLM. AgentGateway already emits OpenTelemetry-compatible spans.
• More models — adding specialized models (medical, legal) with just a new model card in YAML. Semantic Router figures out when to use them.

AgentGateway plus vLLM Semantic Router turns a keyword-based proxy into an ML-powered routing plane — with the same ExtProc pattern usable from a single-node setup to a multi-model Kubernetes deployment.

Get Started

• Install with agentgateway — Kubernetes integration guide
• Gateway API Inference Extension with agentgateway — route to InferencePools with header-based selection
• Multi-factor selection algorithm — cost, latency, and quality weighting
• Community write-up on DEV — extended narrative by Anup Sharma

---

Have a community story about Semantic Router? Open an issue like #2257 and the team will help get it published.
